model lighting when pressing Juyao 2 players PC P 3 2 IN 1 Arcade to USB controller 2 player MAME Multicade Keyboard Encoder

Item Code: 32350972186
Sold: 0
SKU:
0248(閃)
    Please select the information you wantX
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
+
-
Units 801 in Stock
  • Description
Specifications

aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

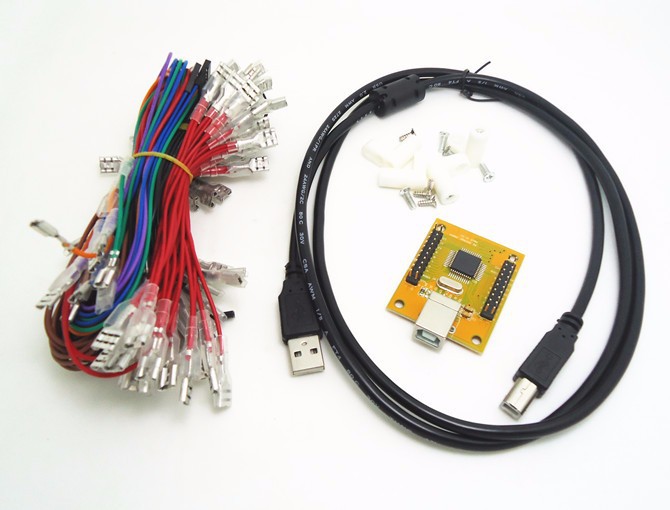

Main board





aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()

  • It supports for  PC and P 3
  • Button Turbo and P 3 are available
  • Free to buy wire for connecting coin acceptor on desktop
  • Free to buy wire for connecting lighting button





Connection and Testing

Test PC/P 3 2 in 1 Jamma on Win7 or Win8 as Example

  1. Please plug USB wire from main board to computer.
  2. Control Panel-> hardware and sound-> Devices and printers

aeProduct.getSubject()

3. Please click mouse right, and choose “Game controller settings”.

aeProduct.getSubject()

4. Please click either option for testing.

aeProduct.getSubject()

5. Testing Panel

aeProduct.getSubject()



Button Turbo :

  1. Turn on function turbo-

        Please hold on button Turbo, and press a button which needs to be functional.

  1. Turn off function turbo-
    Please hold on button Turbo, and press the button again which needs to be non-functional.

Note: only button 1-button 8 can be set up for turbo.



 Button PS:



Button is not available for this version if you use for PS3 or PS3 games on PC.



The wire goes with 4.8mm connector as following picture showed.

aeProduct.getSubject()

aeProduct.getSubject()



aeProduct.getSubject()

aeProduct.getSubject()

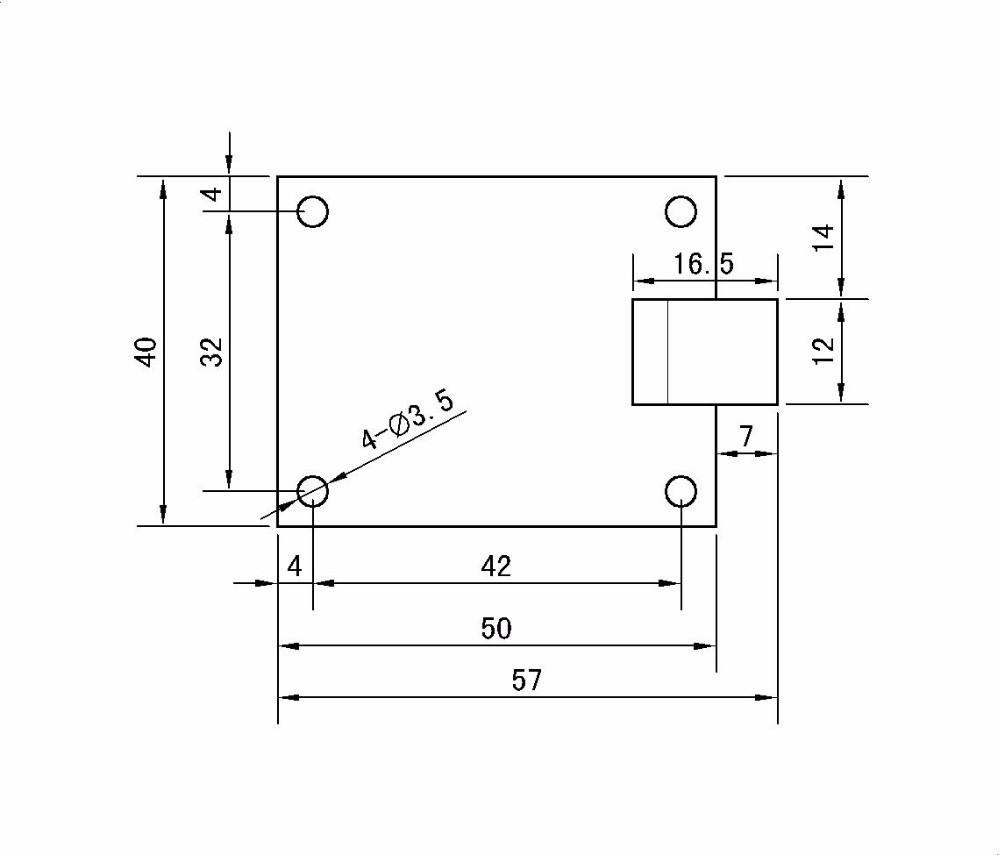

Main board

aeProduct.getSubject()

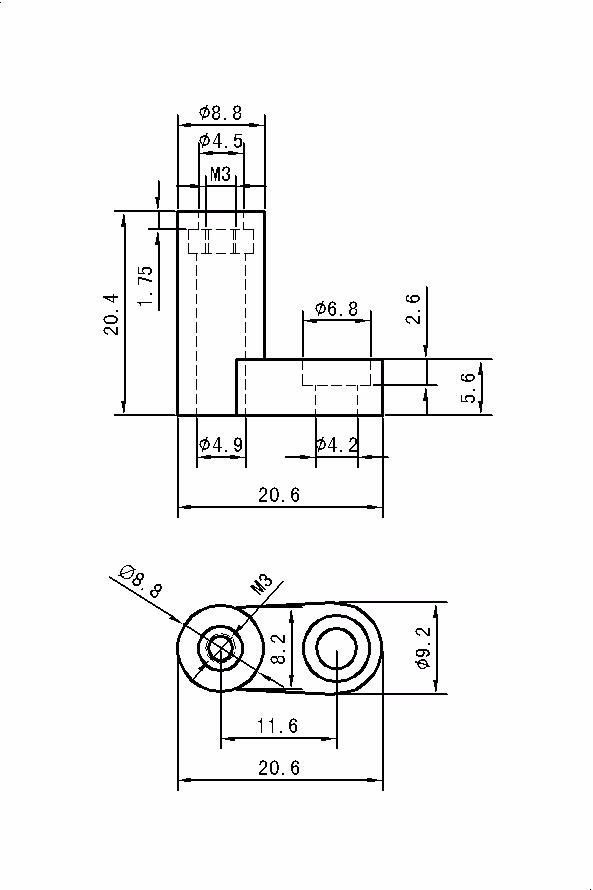

PCB stand

aeProduct.getSubject()

  • Please check with us in advance if you need 2.8mm connector for button or you want some button lighting all the time.
  • Please leave message on order page if you need to change 4.8mm connector to 5P connect for joystick.
